Remote Split |Capacity 9.8-26.17 M3 | 230V
Description
Description
Remote Split System |Capacity 9.8-26.17 M3 | 230V
A remote split system for cold rooms is a commercial refrigeration setup where the refrigeration components are split into two separate units:
-
Evaporator Unit (Inside the Cold Room)
- Installed inside the cold room to absorb heat and lower the temperature.
- Includes a fan to circulate cold air evenly.
-
Condensing Unit (Installed Remotely)
- Placed outside the cold room, often on a rooftop or exterior wall up to a max 5 meters
- Includes the compressor, condenser, and expansion valve, responsible for releasing heat away from the cold room.
Benefits of a Remote Split System:
✅ Better Heat Management – Keeps heat and noise away from the cold room area.
✅ Reduced Noise Levels – Since the compressor is located outside, it keeps the cold room quieter.
✅ Energy Efficiency – More effective cooling compared to self-contained units.
✅ Longer Equipment Life – Reduces wear and tear due to improved ventilation and cooling.
✅ Customizable Installation – Suitable for both small and large cold rooms.

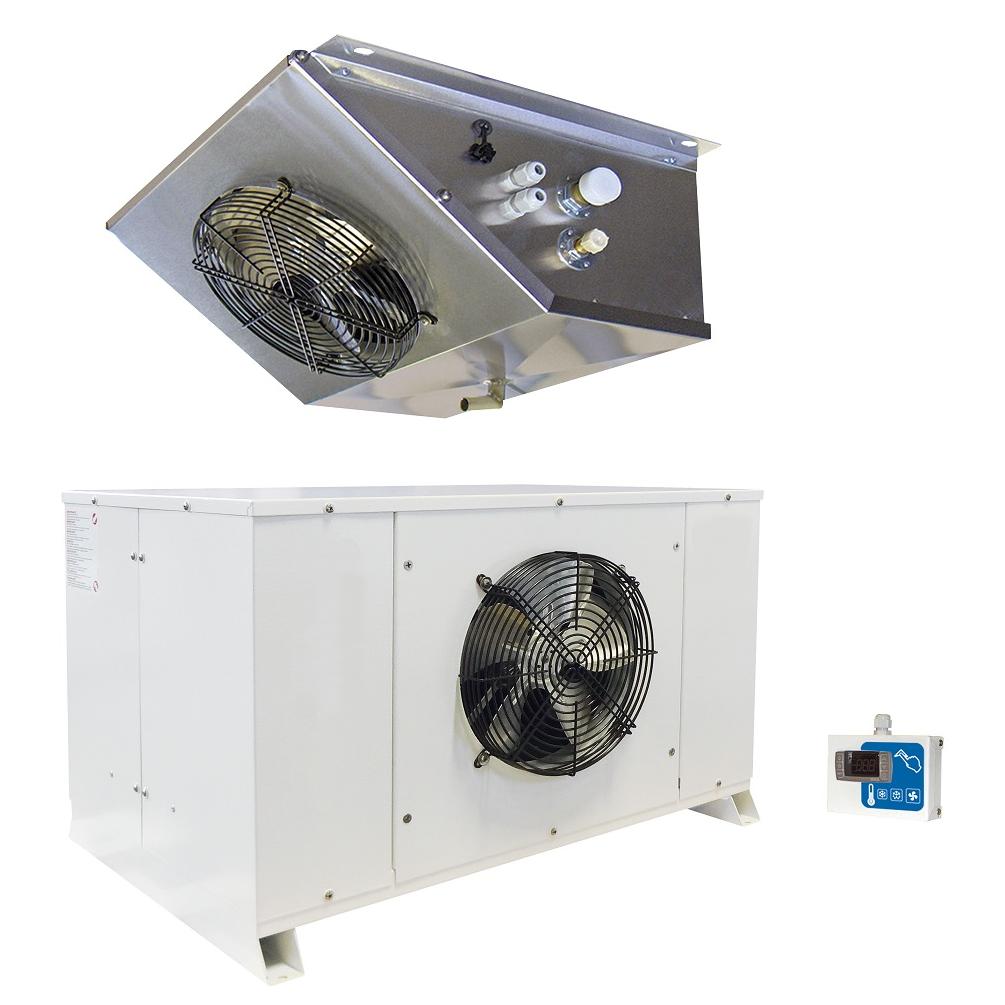

The Positive Split Unit 9.81-26.17 m³ is a refrigeration system designed for cooling spaces ranging from 9.81 m³ to 26.17 m³, making it suitable for small to medium-sized cold rooms. It uses the R 449 A refrigerant, which is an environmentally friendly cooling agent. The unit operates with an automatic defrost system, ensuring consistent performance with minimal maintenance. With a temperature range of 0°C to +5°C, this unit is ideal for storing perishable goods such as dairy, fruits, vegetables, and certain pharmaceuticals.
This refrigeration unit consists of a condenser and evaporator that are installed separately, allowing for efficient heat dissipation and better cooling performance. It runs on a 230V power supply and consumes 1.19 kW of electrical power, ensuring energy-efficient operation.

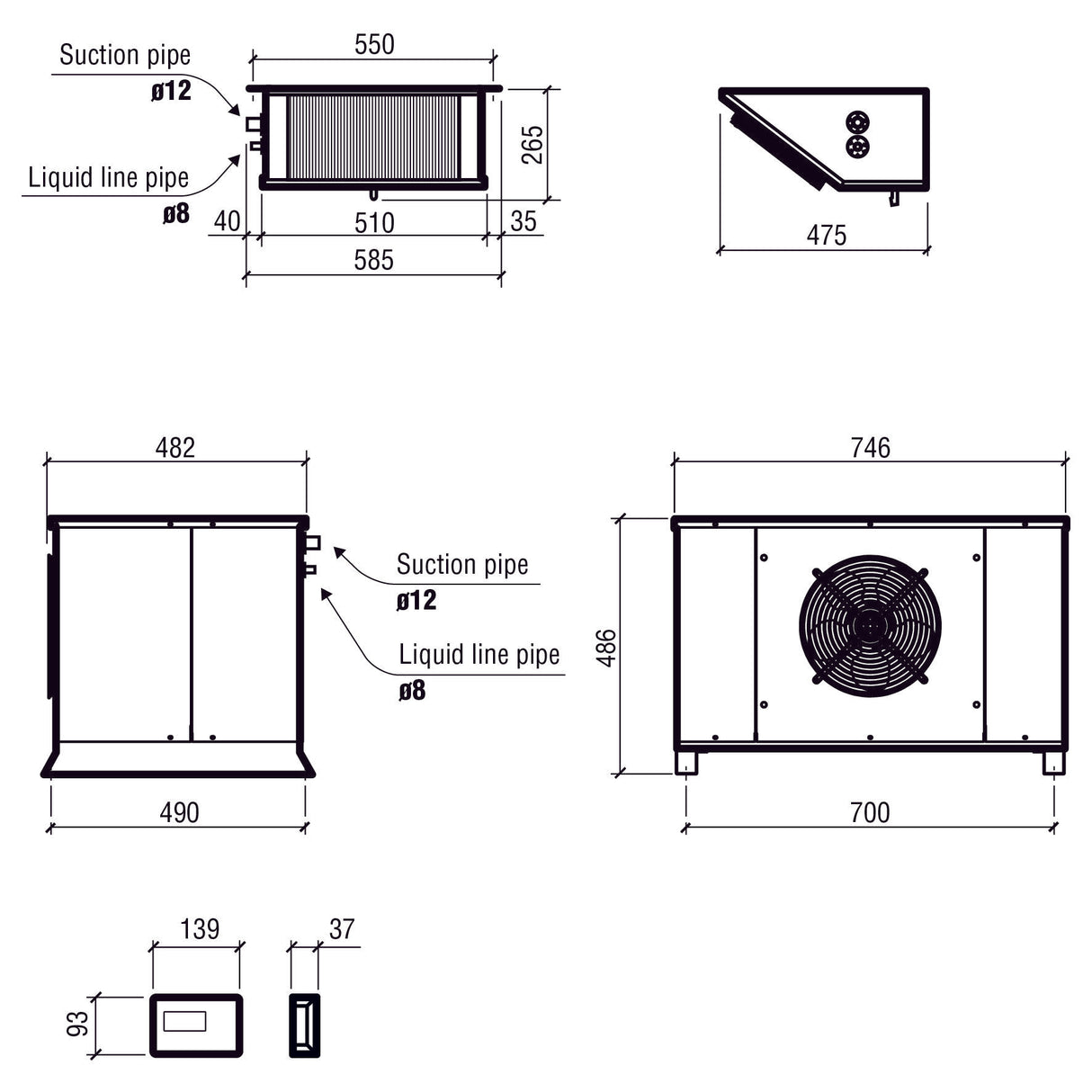

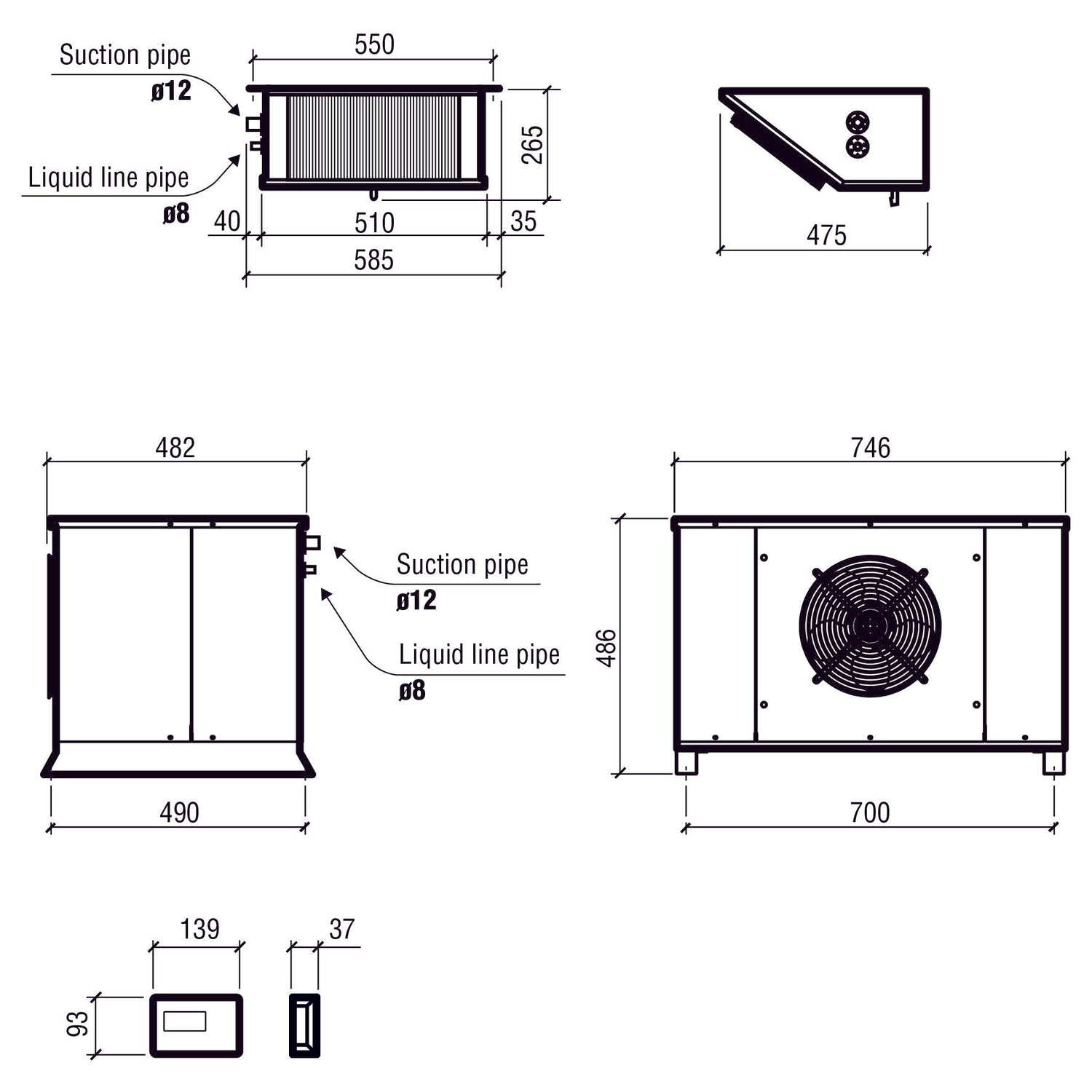

Technical Specifications:
- Cooling Capacity: 9.81 - 26.17 m³
- Dimensions (Condenser Unit):
- Width: 746 mm
- Depth: 482 mm
- Height: 486 mm
- Gross Weight: 53 kg
- Voltage: 230V
- Electrical Power Consumption: 1.19 kW
- Refrigerant Type: R 449 A
- Temperature Range: 0°C to +5°C
- Evaporator Dimensions (WxDxH): 585 x 475 x 265 mm
- Defrost System: Automatic
- Refrigerant Quantity: 700 g
- Italian Manufacturer
-
2 years part replacement warranty
-
Delivery 4 to 5 working days
