Description
Description

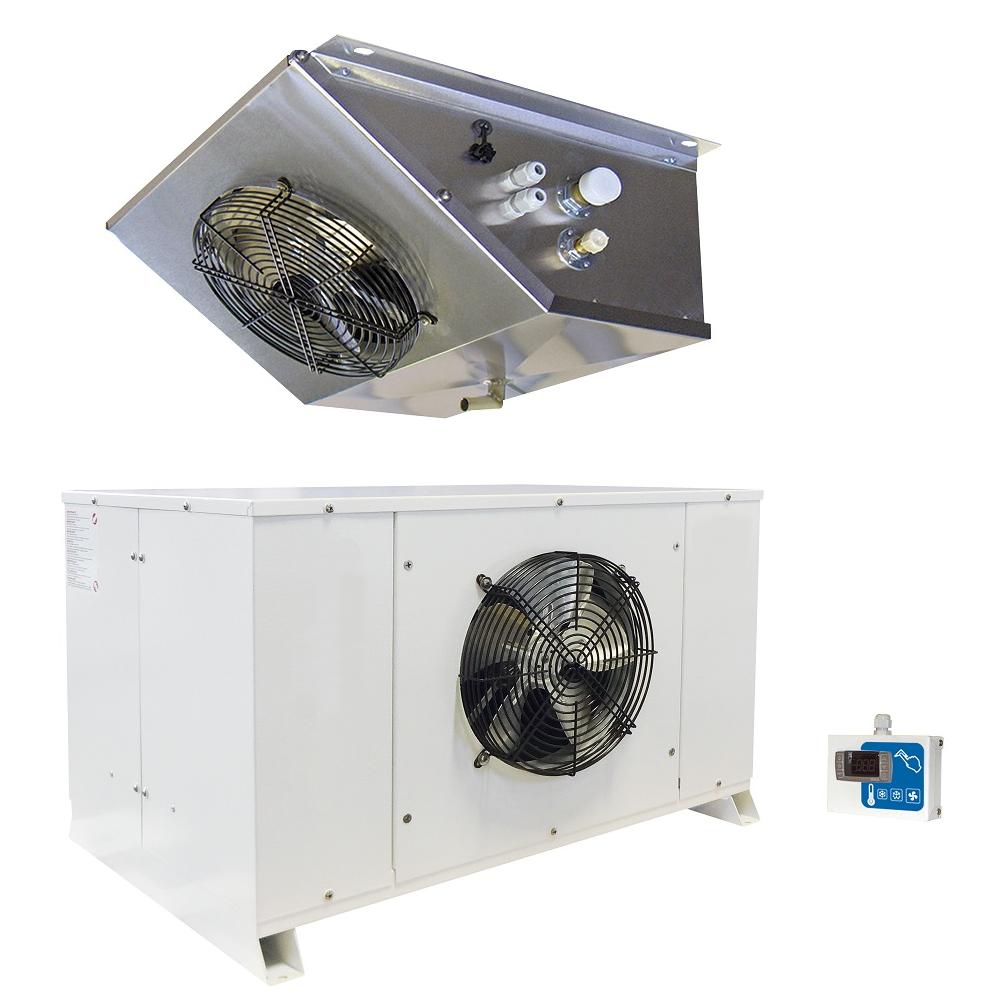

Remote Split System |Capacity 5.59-15.43 M3 | 230V
A remote split system for cold rooms is a commercial refrigeration setup where the refrigeration components are split into two separate units:
-
Evaporator Unit (Inside the Cold Room)
- Installed inside the cold room to absorb heat and lower the temperature.
- Includes a fan to circulate cold air evenly.
-
Condensing Unit (Installed Remotely)
- Placed outside the cold room, often on a rooftop or exterior wall up to a max 5 meters
- Includes the compressor, condenser, and expansion valve, responsible for releasing heat away from the cold room.
Benefits of a Remote Split System:
✅ Better Heat Management – Keeps heat and noise away from the cold room area.
✅ Reduced Noise Levels – Since the compressor is located outside, it keeps the cold room quieter.
✅ Energy Efficiency – More effective cooling compared to self-contained units.
✅ Longer Equipment Life – Reduces wear and tear due to improved ventilation and cooling.
✅ Customizable Installation – Suitable for both small and large cold rooms.
Key Features:
✔ Temperature Range: 0°C to +5°C – Perfect for fresh food storage
✔ Automatic Defrosting
✔ Efficient Cooling Agent (R 449 A) – Eco-friendly and powerful
✔ High Cooling Capacity: For a coldroom interior capacity of 5.59 - 15.43 m³

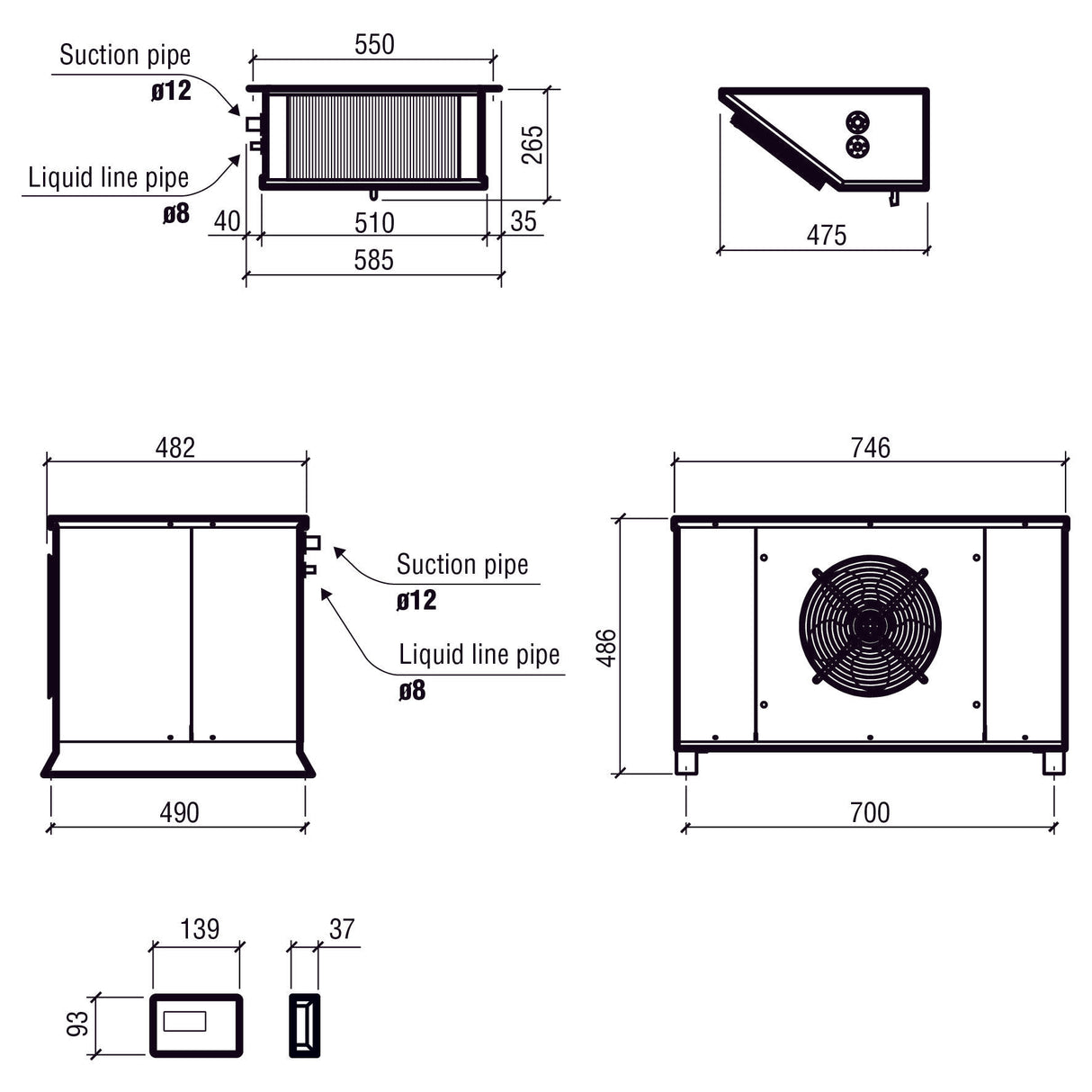

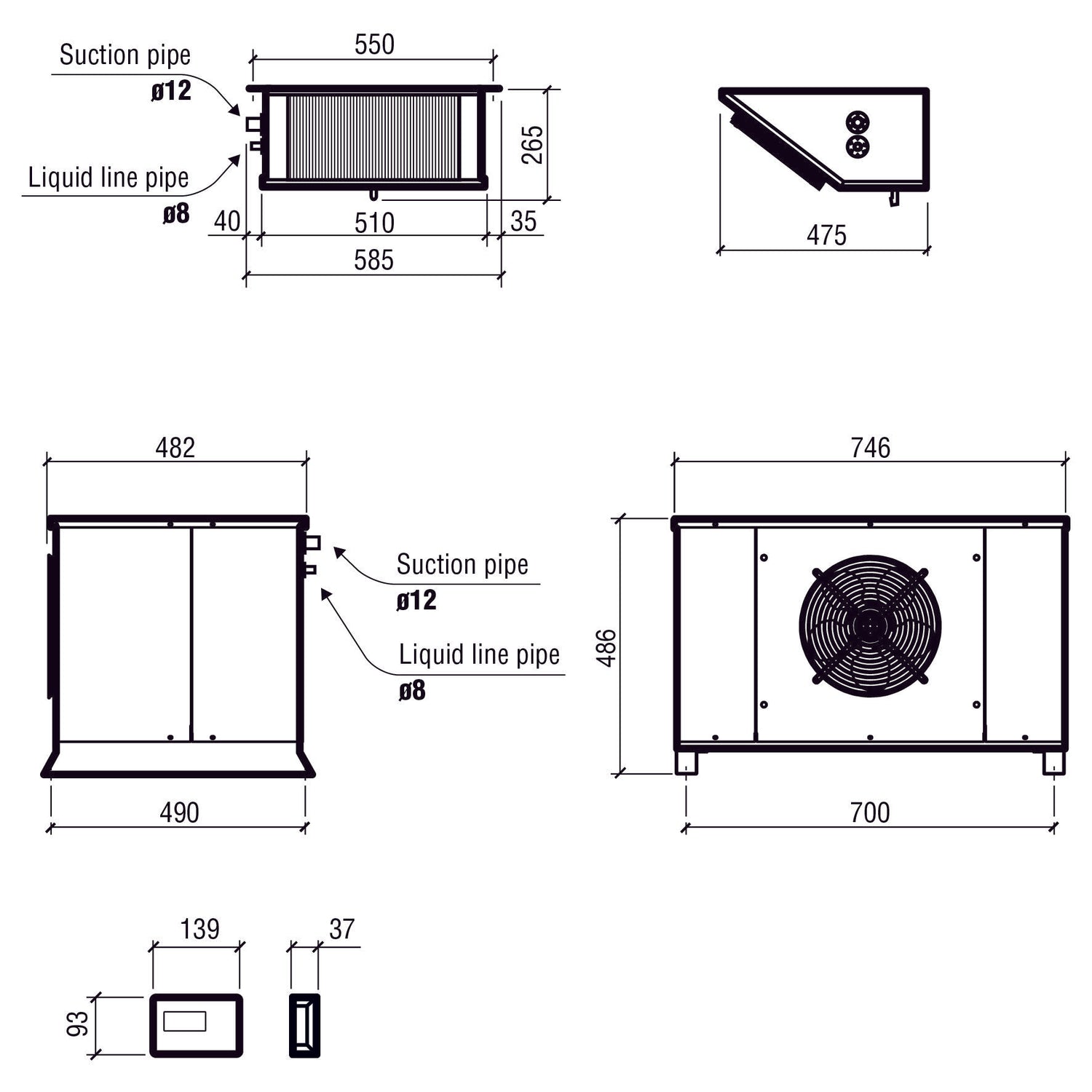

🔧 Technical Specifications:
- Dimensions (WxDxH): 746 x 482 x 486 mm
- Evaporator Dimensions (WxDxH): 585 x 475 x 265 mm
- Voltage: 230V | Power: 0.74 kW
- Refrigerant Quantity: 700g
- Precharged up to 5meters
- Gross Weight: 50 kg
This refrigeration unit is perfect for professional kitchens, cold storage rooms, and food preservation needs. This must be fitted by a fully qulaified F Gas engineer. A range of split systems are available here
https://modularcoldrooms.co.uk/product-category/cooling-engines/outdoor-remote-systems/outdoor-remote-systems-refrigeration-units/
Talk to us if you are unsure on which system is right for you 0161 713 3085
