Freezer Straddle Unit | Capacity 2,8-4,9 m3 | 230V
Description
Description
R290 Straddle Monoblock Freezer Unit – 2.8–4.9 m³ – 230V
A compact straddle monoblock refrigeration system designed for small commercial freezer cold rooms. Operating between -25°C and -10°C, this self-contained R290 unit provides a practical refrigeration solution for restaurants, cafés, pubs, takeaways and other commercial food businesses.
The compact straddle design is particularly useful where floor space inside the cold room needs to be maximised.
What is a Straddle Monoblock?
A straddle monoblock is a complete refrigeration system contained within one unit that is designed to sit over – or “straddle” – the top edge of the cold room wall panel.
Rather than having a separate indoor evaporator and outdoor condensing unit connected by refrigerant pipework, the main refrigeration components are incorporated into a single compact assembly.
Part of the unit sits inside the cold room to circulate and cool the refrigerated air, while the other section remains outside the cold room to reject the heat.
This provides a neat, space-saving refrigeration solution and avoids having a large refrigeration unit taking up valuable storage space inside the cold room.
Key Features
- Suitable for freezer cold rooms of approximately 2.8–4.9 m³*
- Freezer operating temperature: -25°C to -10°C
- Straddle-mounted monoblock design
- Complete self-contained refrigeration system
- R290 natural refrigerant
- Refrigerant charge: 150 g
- 230V / 50Hz electrical supply
- Electrical power: 0.65 kW
- Digital electronic control
- Digital temperature display
- Automatic defrost
- Maximum stated ambient temperature: 32°C
- Compact white casing
- Ideal for small commercial walk-in freezer applications
- 2 Year Warranty

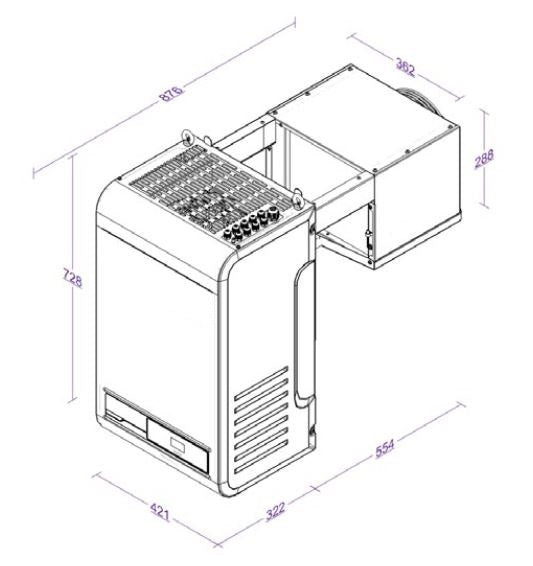

Dimensions
- Width: 421 mm
- Depth: 876 mm
- Height: 728 mm
- Net weight: 46 kg
- Gross weight: 58 kg
Technical Specification
| Specification | Details |
|---|---|
| Cold Room Volume* | 2.8–4.9 m³ |
| Temperature Range | -25°C to -10°C |
| Refrigerant | R290 |
| Refrigerant Charge | 150 g |
| Electrical Supply | 230V / 50Hz |
| Electrical Power | 0.65 kW |
| Control | Digital |
| Temperature Display | Digital |
| Defrost | Automatic |
| Maximum Ambient Temperature | 32°C |
| Width | 421 mm |
| Depth | 876 mm |
| Height | 728 mm |
| Net Weight | 46 kg |
| Gross Weight | 58 kg |
| Warranty | 2 Years |
| Delivery | Allow 507 Working Days Free |
Important – Cold Room Capacity
The stated 2.8–4.9 m³ cold room volume is a guide and should not be treated as a guaranteed maximum capacity.
Actual suitability depends on several factors, including ambient temperature, required cold room temperature, insulation type and thickness, frequency and duration of door openings, product load, product entry temperature and other site conditions.
Please Check Suitability Before Ordering
The customer is responsible for checking the unit dimensions, cold room dimensions, panel construction, available installation space, electrical supply and refrigeration requirements before placing an order.
If you are unsure whether this straddle unit is suitable, please contact us before ordering:
Tel: 0161 713 3085
WhatsApp: 07762 243 751
Email: sales@modularcoldrooms.com
We can discuss your cold room dimensions and operating requirements and help with unit selection.
