Zanotti Freezer BPS3115YA11A | 7.7m³ | 230V
Description
Description

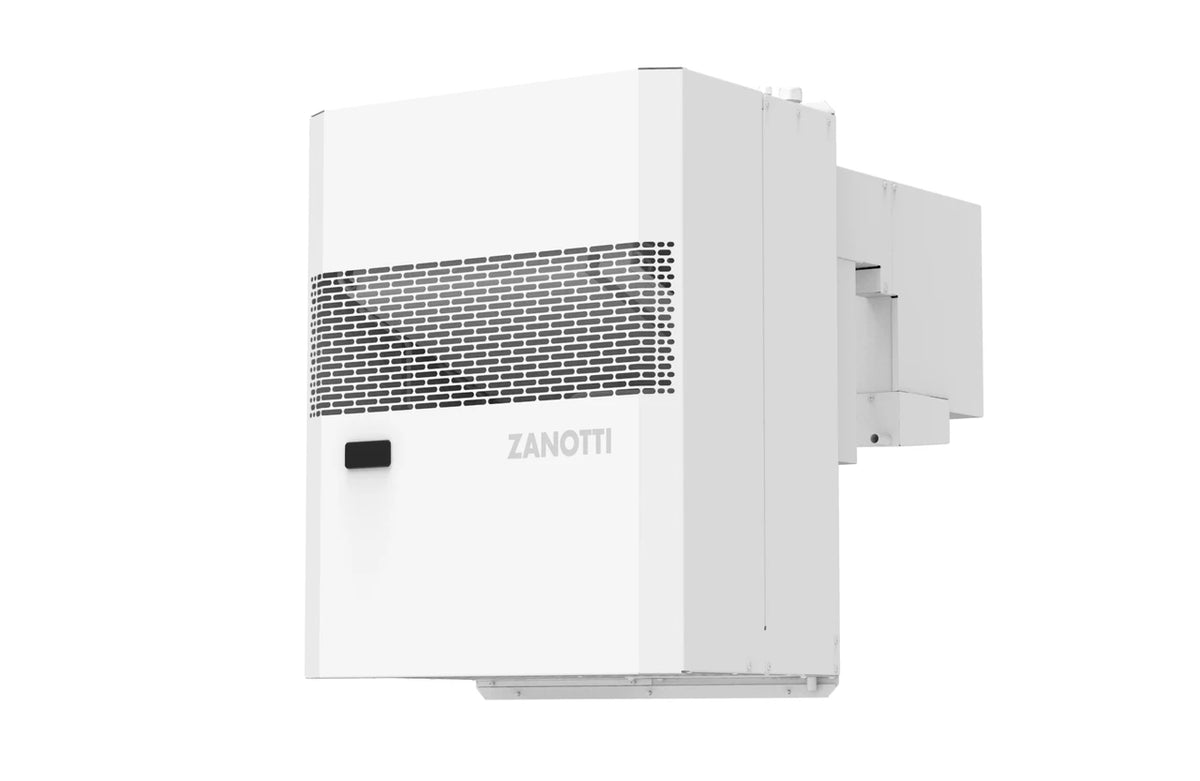

Zanotti BPS3115YA11A Low Temperature Monoblock Refrigeration Unit – Indoor Use
The Zanotti BPS3115YA11A is a commercial low-temperature monoblock refrigeration unit designed specifically for freezer rooms and the storage of pre-frozen goods.
Using environmentally friendly R290 refrigerant, this compact system provides reliable low-temperature refrigeration for restaurants, catering businesses, food production facilities, supermarkets and commercial frozen-food storage.
The unit is available in both straddle-mounted and through-wall configurations. This listing includes the 110mm through-wall installation kit.
Key Features
- Low-temperature commercial freezer monoblock
- Designed for pre-frozen product storage
- Through-wall installation kit included
- Straddle configuration also available
- Environmentally friendly R290 refrigerant
- Hot gas defrost
- Hermetic reciprocating compressor
- Electronic control board
- Thermal expansion valve
- Condensate evaporation system
- Master/slave connection capability
- Suitable for commercial freezer-room applications
- CE certified
Technical Specifications
Technical Specification – BPS3115YA11A
| Specification | BPS3115YA11A |
|---|---|
| Application | Low Temperature / Freezer |
| Dimensions (H × D × W) | 850 × 1010 × 650 mm |
| Weight | 87.6 kg |
| Power Supply | 230V / 1Ph / 50Hz |
| Voltage Range | 207–250V |
| Rated Input Power | 1,240 W |
| Maximum Input Power | 1,680 W |
| Rated Input Current | 6.06 A |
| MCA (Maximum Current Amps) | 9.12 A |
| MFA (Maximum Fuse Amps) | 10 A |
| TOCA (Total Overcurrent Amps) | 43 A |
| Compressor | Hermetic Reciprocating – ON/OFF Controlled |
| Condenser Air Flow | 930 m³/h |
| Evaporator Air Flow | 1,150 m³/h |
| Evaporator Air Throw | 5 m |
| Defrost | Hot Gas |
| Ambient Operating Range | +5°C to +45°C |
| Cold Room Operating Range | -25°C to -15°C |
| Refrigerant | R290 |
| GWP | 0.02 |
| Number of Refrigeration Circuits | 1 |
| Refrigerant Charge | Maximum 150 g per circuit |
| Sound Pressure | 47.5 dBA at 10 m |
| PED Category | I |
| IP Rating | IPX0 |
Standard Equipment
- Electronic control board
- Thermal expansion valve
- Filter dryer
- Fin-and-tube condenser
- Fin-and-tube evaporator
- Condensate evaporation tray with automatic water elimination
- Fixed-calibration high-pressure switch with automatic reset
- Serial output
- Master/slave connectivity
- Provision for “Man in Cold Room” alarm connection
- 5m power supply cable
- 2m lighting cable
- 5m door microswitch cable
- Door heater cable for low-temperature applications
Suitable Applications
Ideal for commercial freezer rooms used by:
- Restaurants and commercial kitchens
- Hotels
- Catering businesses
- Food production facilities
- Supermarkets
- Hospitality businesses
- Frozen-food storage facilities
Important – Low Temperature / Pre-Frozen Goods
The BPS3115YA11A is a dedicated low-temperature freezer unit, designed to maintain a cold room operating temperature between -25°C and -15°C.
This unit is intended for the storage of PRE-FROZEN GOODS ONLY.
It should not be confused with a blast freezer or product pull-down system and is not designed to freeze large quantities of warm or unfrozen product from ambient temperature.
This model is also not intended for standard chilled-temperature applications. Please contact us if you require a chiller unit.

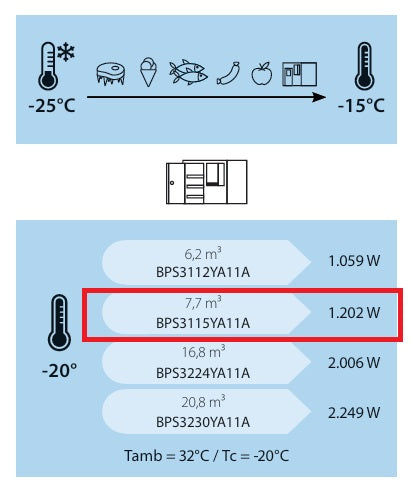

Cold Room Capacity – Important
Any stated cold room capacity (m³) is an approximate guide only and should not be treated as a guaranteed room capacity.
The correct refrigeration unit and achievable performance depend on the specific application and operating conditions, including:
- Ambient temperature
- Required internal room temperature
- Cold room dimensions and insulation
- Panel thickness
- Frequency and duration of door openings
- Product type and quantity
- Product entering temperature
- Daily product loading
- Usage and operating conditions
If you are unsure which refrigeration unit you require, please contact us before ordering. Our team can help identify a suitable unit for your application.
We also offer a professional installation service – please contact us for a quotation.
Why Choose R290?
R290 is a natural refrigerant offering:
- Very low Global Warming Potential (GWP)
- Zero Ozone Depletion Potential
- Excellent refrigeration performance
- Good energy efficiency
- Reduced environmental impact
Warranty & Delivery
Warranty: 1-year manufacturer's parts warranty.
Delivery: Typically 2–3 working days, delivered via pallet network.
Installation is not included in the advertised price. Professional installation is available separately – please contact us for a quotation.
If you require advice regarding room sizing, refrigeration capacity, installation or suitability for your application, please contact us before placing your order.
